Product Description

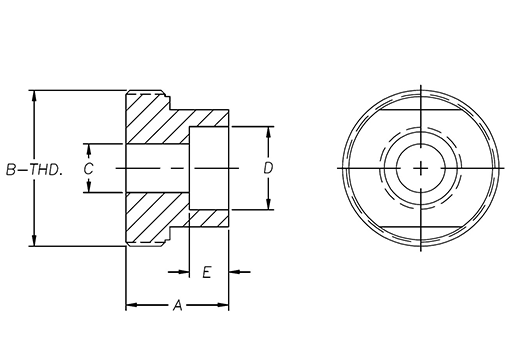

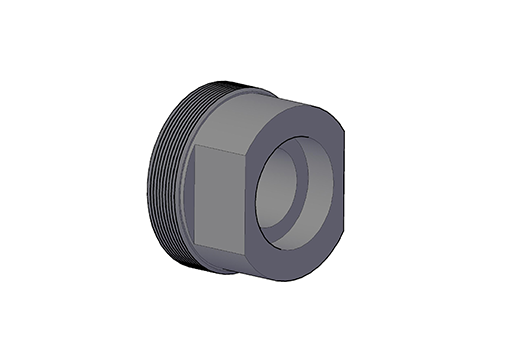

MD48 Threadpiece – OD Tube Socket Weld

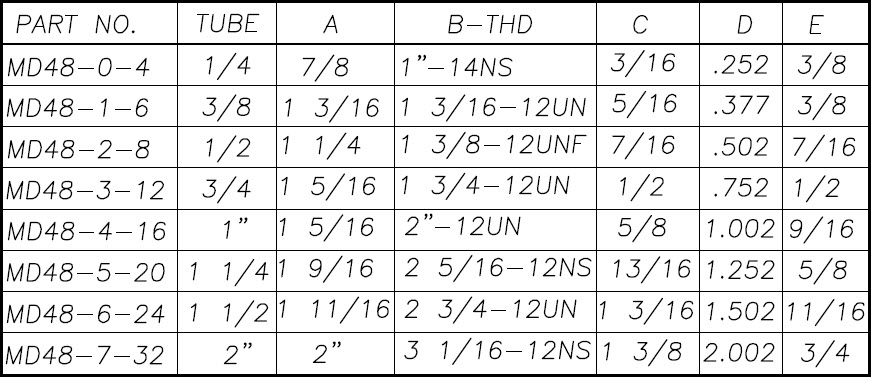

MD48_CH
Dimensions subject to change without notice.

  • Standard Materials: NICU, Stainless Steel, Steel and CUNI.
  • Other materials available upon request.
  • 6000 PSI working pressure.
  • Reducing fittings available.

Click below to view or download Product Data:

PDF-Icon-WebMD48 Threadpiece – OD Tube Socket Weld – 6000PSI

Click below to view or download Engineering Data:

About High Pressure Fittings Flat Faced Seal (FFS)
Sil Braze Information
High Pressure Fittings Engineering Data
High Pressure Fittings O-Rings
Welding Information
