Product Description

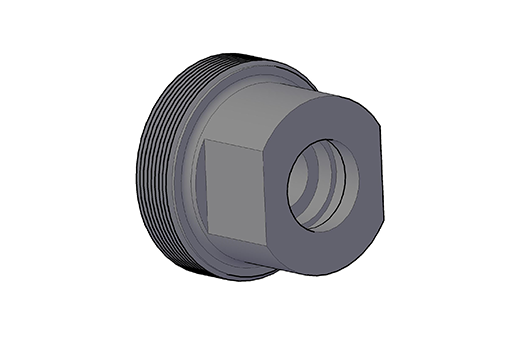

MD52 Threadpiece – IPS Braze Groove

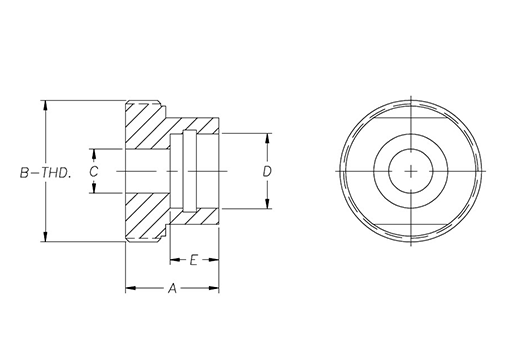

Dimensions subject to change without notice.

• Standard Materials: Bronze.
• Other materials available upon request.
• 3000 PSI.
• Preinserted Braze Rings are not supplied with fittings but are available, if required please specify grade.
• Reducing fittings available.

Click below to view or download Product Data:

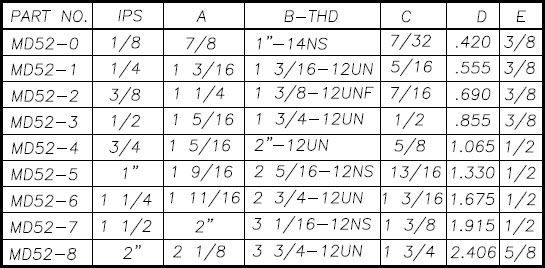

MD52 Threadpiece – IPS Braze Groove

Click below to view or download Engineering Data:

About High Pressure Fittings Flat Faced Seal (FFS)
Sil Braze Information
High Pressure Fittings Engineering Data
High Pressure Fittings O-Rings
Welding Information
