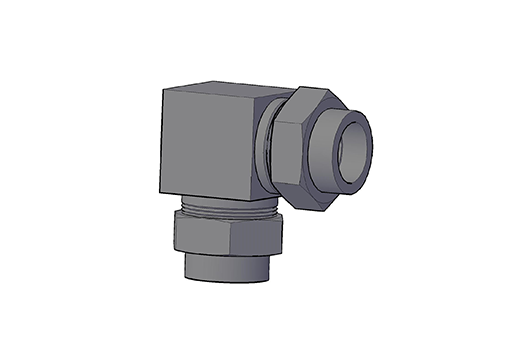

MP320 Union Elbow – Pipe to Pipe

For Questions, Sales & Support:
Call (267) 222-8900

Product Description

MP320 Union Elbow – Pipe to Pipe

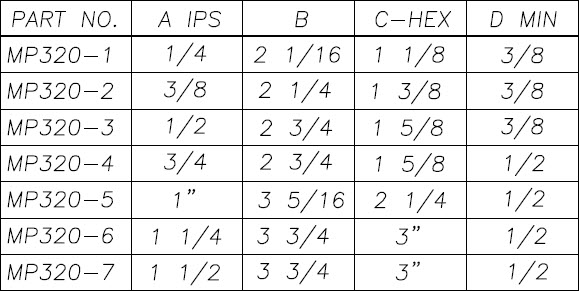

MP320_CH

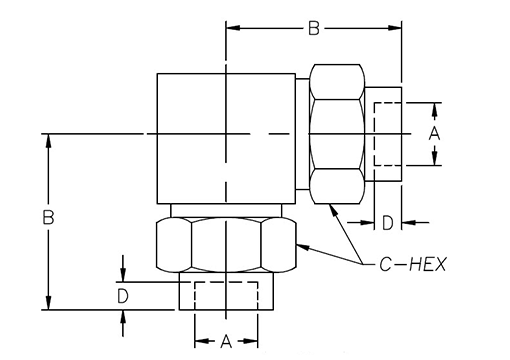

Dimensions subject to change without notice.

  • Standard Materials: Stainless Steel, NICU, Steel and 70/30 CUNI.
  • Other materials available upon request.
  • 3000 PSI Working Pressure.
  • Reducing fittings available.
  • Metric sizes available.
  • For Tube (OD) Socket Fittings, see MT320.

Click below to view or download Product Data:

PDF-Icon-WebMP320 Union Elbow – Pipe to Pipe

Click below to view or download Engineering Data:

About MP Series Flat Faced Seal (FFS)
Sil Braze Information
O-Rings
MP Pressure
For Recommended Union Nut Torque Values, please contact Factory.
