Product Description

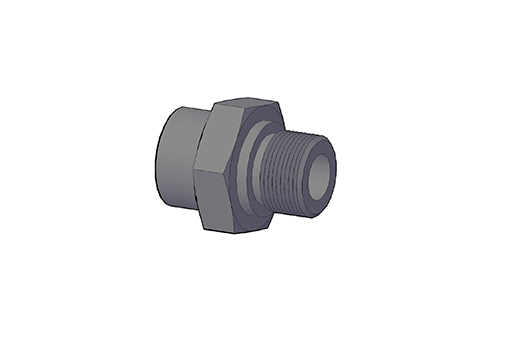

MA445 Adapter – IPS Sil Braze X Male STR THD.

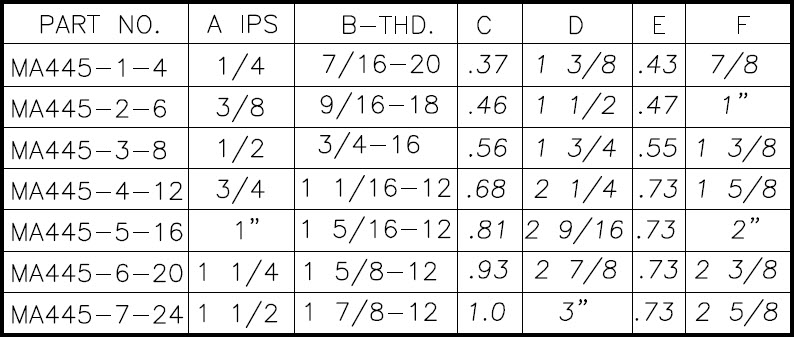

MA445_CH

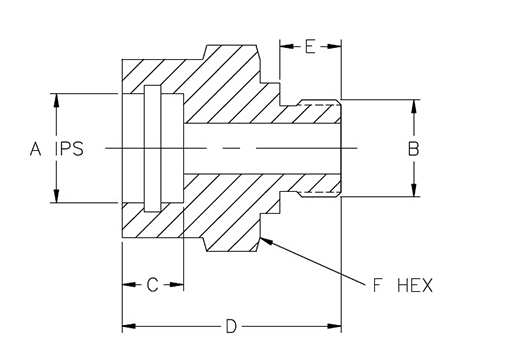

Dimensions subject to change without notice.

  • Standard Materials: Stainless Steel, NICU, Steel and CUNI.
  • Other materials available upon request.
  • Reducing fittings available.
  • For O-Ring sizes and materials, see High Pressure Fittings O-Rings.
  • Straight Thread I/A/W SAE J1926/2 Specification.
  • For working pressure ratings of Straight Thread and Flow Holes, see engineering sheets below.

Click below to view or download Product Data:

PDF-Icon-WebMA445 Adapter – IPS Sil Braze X Male STR THD.

Click below to view or download Engineering Data:

About High Pressure Fittings Flat Faced Seal (FFS)
Sil Braze Information
High Pressure Fittings Engineering Data
High Pressure Fittings O-Rings
Welding Information
