Product Description

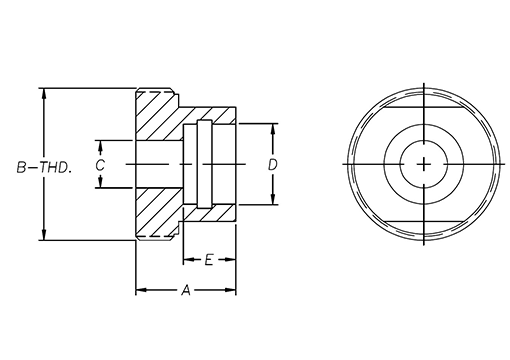

MD49 Threadpiece – OD Tube Sil-Braze

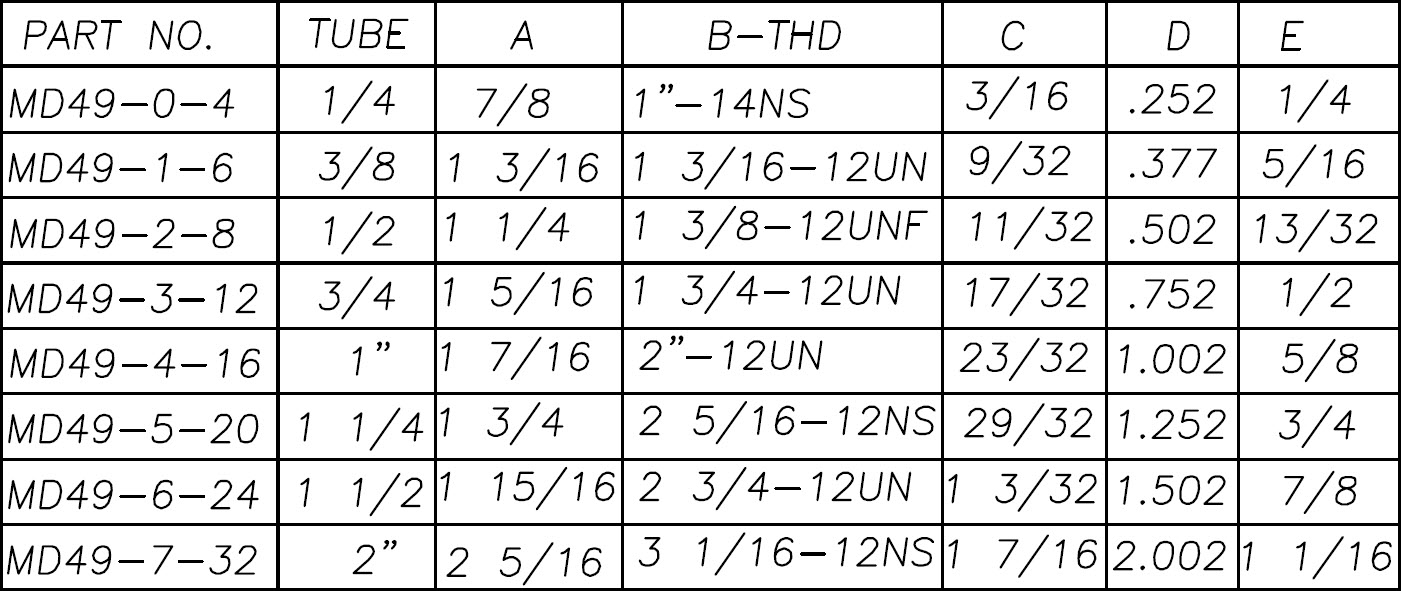

MD49_CH
Dimensions subject to change without notice.

  • Standard Materials: Bronze.
  • Other materials available upon request.
  • 3300 PSI.
  • Flow Holes determined from Class 3300 MIL-T-16420.
  • Reducing fittings available.

Click below to view or download Product Data:

PDF-Icon-WebMD49 Threadpiece – OD Tube Sil-Braze

Click below to view or download Engineering Data:

About High Pressure Fittings Flat Faced Seal (FFS)
Sil Braze Information
High Pressure Fittings Engineering Data
High Pressure Fittings O-Rings
Welding Information
