Product Description

MP302 Union – IPS X Female NPT

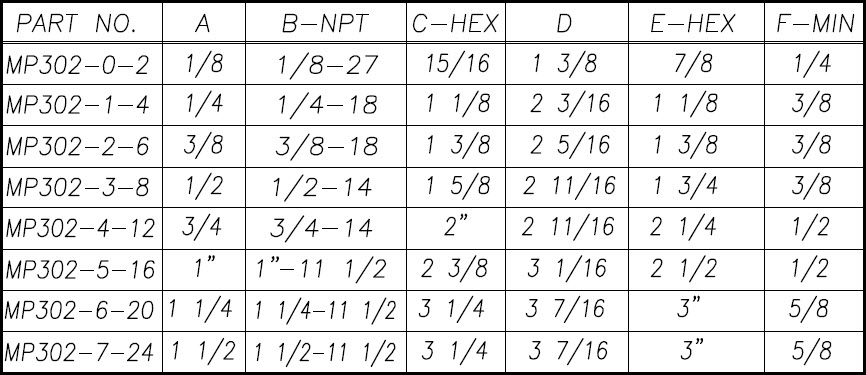

MP302_CH

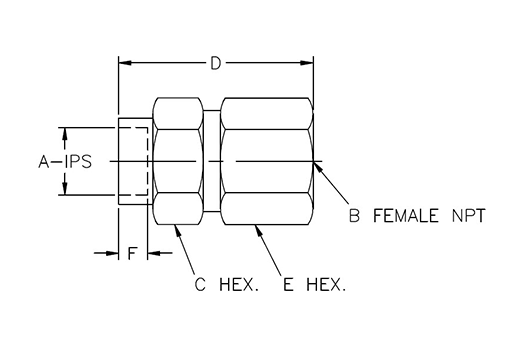

Dimensions subject to change without notice.

  • Standard Materials: Stainless Steel, NICU, Steel and 70/30 CUNI.
  • Other materials available upon request.
  • 3000 PSI Working Pressure.
  • For Tube (OD) Socket Fittings, see MT302.
  • Metric sizes available.

Click below to view or download Product Data:

PDF-Icon-Web MP302 Union – IPS X Female NPT

Click below to view or download Engineering Data:

About MP Series Flat Faced Seal (FFS)
Sil Braze Information
O-Rings
MP Pressure
For Recommended Union Nut Torque Values, please contact Factory.
