MT322 Union Elbow – Tube X Female NPT

Phone Ordering & Customer Service:
(267) 222-8900

Monday -Thursday 6:30 AM EST to 5:00 PM EST
Friday 6:30 AM EST to 3:00 PM EST

Product Description

MT322 Union Elbow – Tube X Female NPT

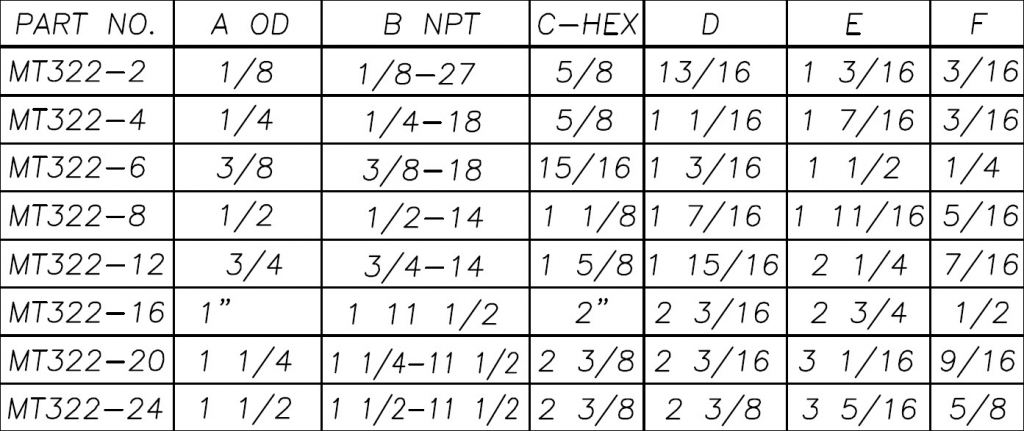

MT322Series_ch
Dimensions subject to change without notice.

  • Standard Materials: Stainless Steel, NICU, Steel and 70/30 CUNI.
  • Other materials available upon request.
  • 3000 PSI Working Pressure.
  • For Pipe (IPS) Socket Fittings, see MP322.
  • Metric sizes available.

Click below to view or download Product Data:

PDF-Icon-Web MT322 Union Elbow – Tube X Female NPT

Click below to view or download Engineering Data

About Flat Faced Seal (FFS) Series
Sil Braze Information
MT Series Fittings O-Rings
MT Series Pressure Rating
Union Nut Recommended Torques
