Product Description

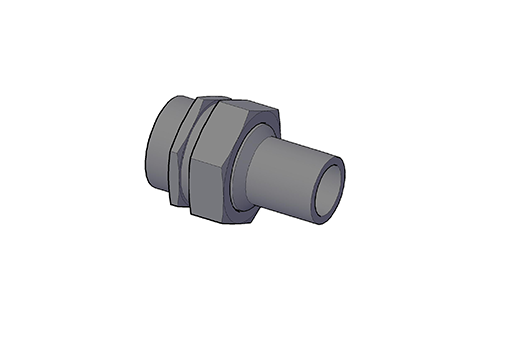

MT306 Union – Tube X Male Tube

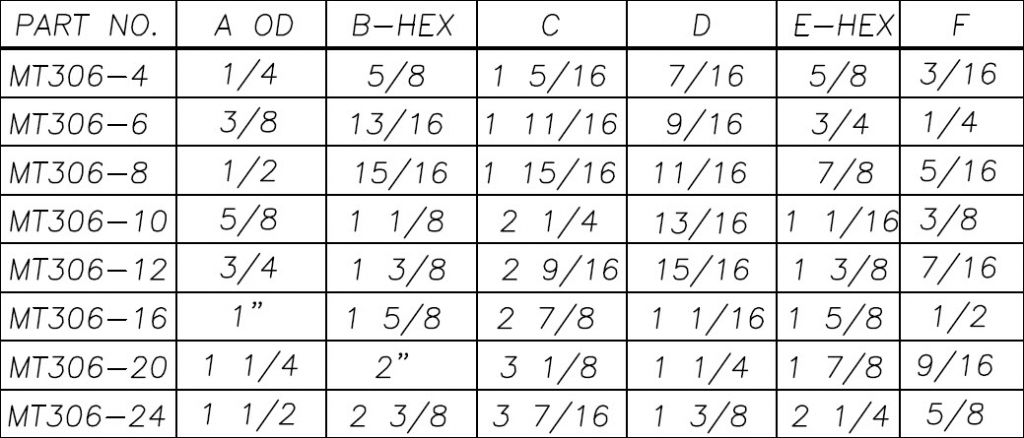

MT306_CH

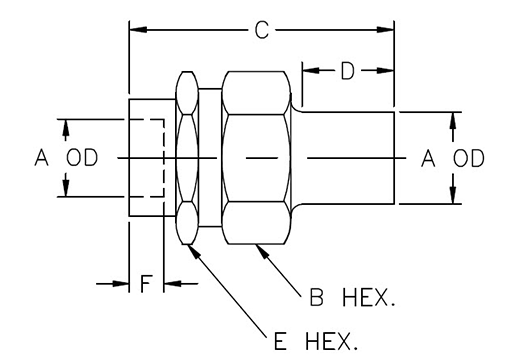

Dimensions subject to change without notice.

  • Standard Materials: Stainless Steel, NICU, Steel and 70/30 CUNI.
  • Other materials available upon request.
  • 3000 PSI Working Pressure.
  • Reducing Fittings available, consult factory.
  • Metric sizes available.

Click below to view or download Product Data:

PDF-Icon-Web MT306 Union – Tube X Male Tube

Engineering Data:

About Flat Faced Seal (FFS) Series
Sil Braze Information
MT Series Fittings O-Rings
MT Series Pressure Rating
Union Nut Recommended Torques
