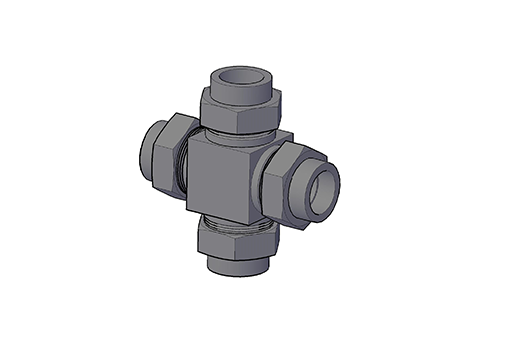

MT309 Union Cross – Tube X Tube X Tube X Tube

Phone Ordering & Customer Service:
(267) 222-8900

Monday -Thursday 6:30 AM EST to 5:00 PM EST
Friday 6:30 AM EST to 3:00 PM EST

Product Description

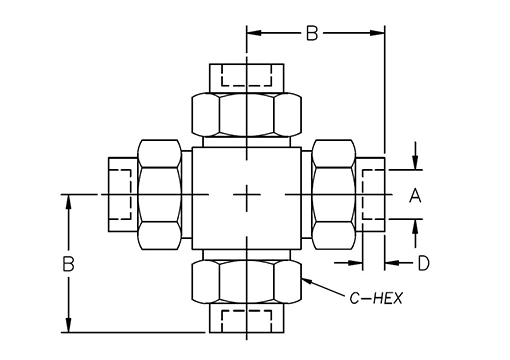

MT309 Union Cross – Tube X Tube X Tube X Tube

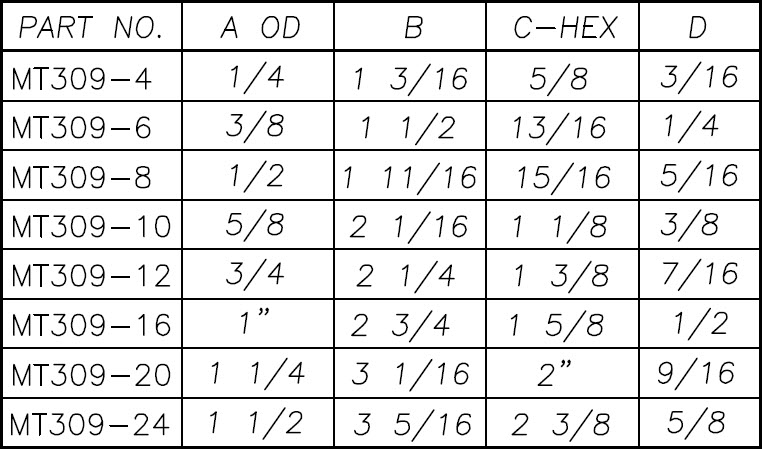

MT309_CH
Dimensions subject to change without notice.

  • Standard Materials: Stainless Steel, NICU, Steel and 70/30 CUNI.
  • Other materials available.
  • 3000 PSI Working Pressure.
  • Reducing Fittings available, consult factory.
  • For Pipe Socket Fittings, consult factory.
  • Metric sizes available.

Click below to view or download Product Data:

PDF-Icon-Web MT309 Union Cross – Tube X Tube X Tube X Tube

Engineering Data

About Flat Faced Seal (FFS) Series
Sil Braze Information
MT Series Fittings O-Rings
MT Series Pressure Rating
Union Nut Recommended Torques
